KIT AA-06NDRY
Free
Architecture / House
Manual

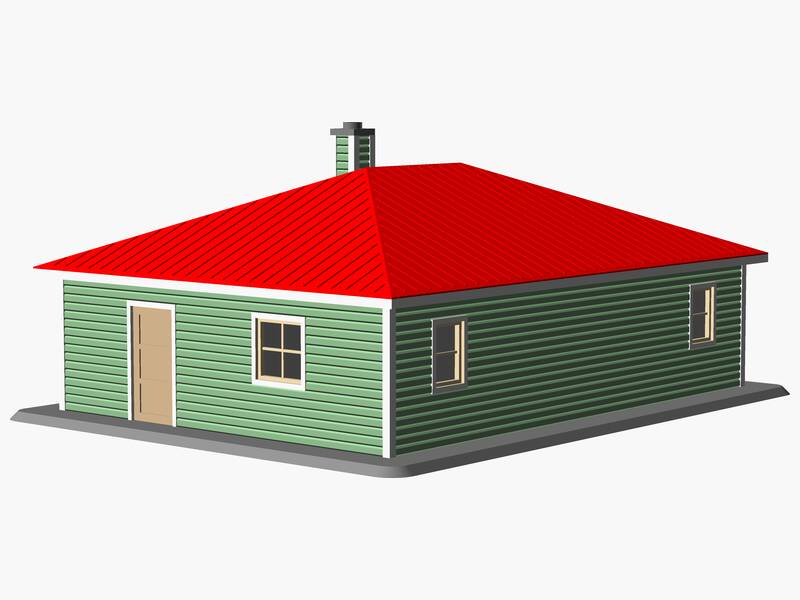

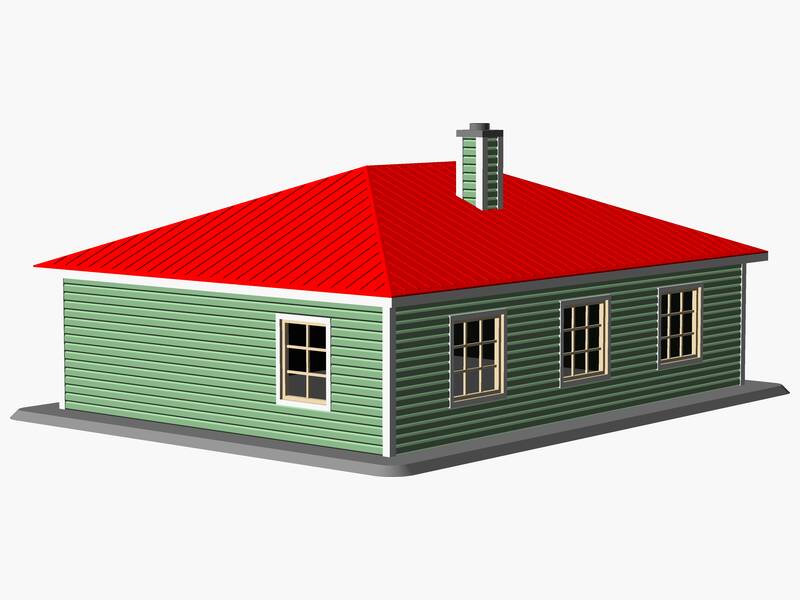

A 1/87 scale model of a ranch-style house. It features a 5/12 pitch hip roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 7 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 109 × 141 × 62 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 7
- Exterior Doors
- 1
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Chimney with enclosed chase
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 108.68 | 140.23 | 61.20 |
| Perimeter #1 | 91.15 | 122.70 | 28.05 |
| Wall #2 | 89.40 | 28.05 | 1.79 |
| Wall #3 | 120.95 | 28.05 | 1.75 |
| Wall #4 | 89.40 | 28.05 | 1.75 |
| Wall #5 | 120.95 | 28.05 | 1.75 |
| Roof #6 | 98.16 | 129.71 | 31.43 |
| Base #7 | 108.68 | 140.23 | 1.75 |
