KIT AC-0IP5RY
Free
Architecture / House
Manual

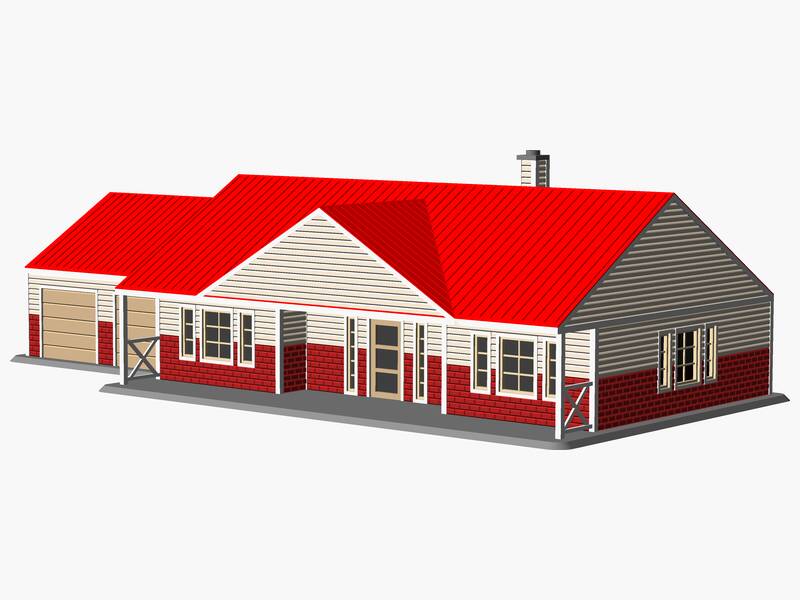

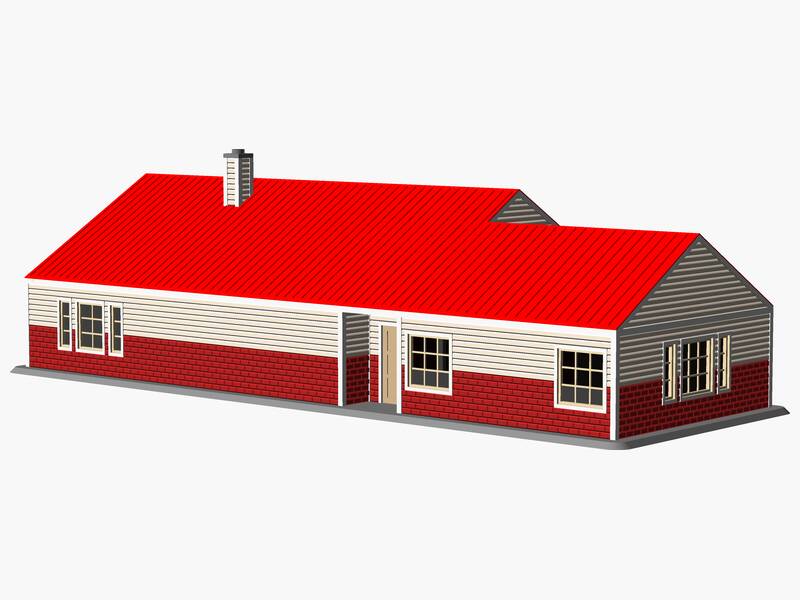

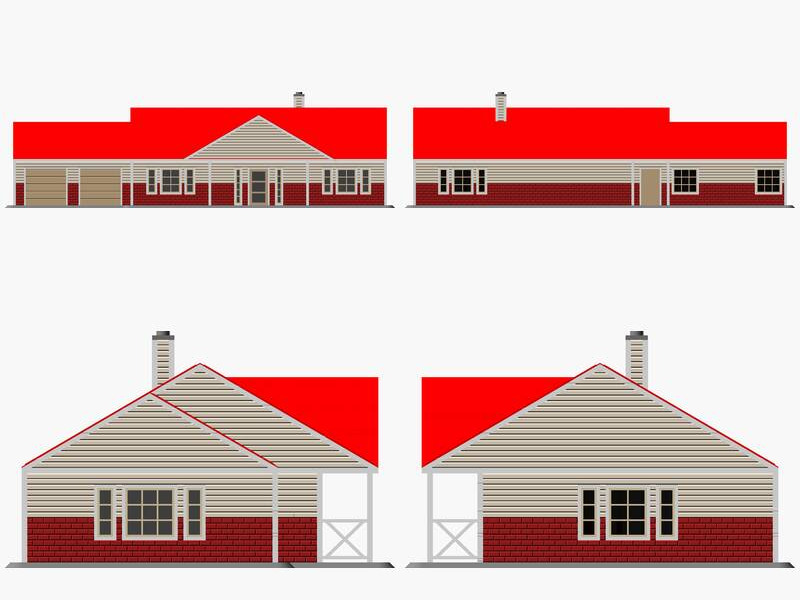

A 1/87 scale model of a ranch-style house. It features a 7/12 pitch gable roof. Exterior materials include brick veneer lower with vinyl or wood upper siding with a standing seam metal roof system. The structure includes 19 windows and 4 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 251 × 123 × 75 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 19
- Exterior Doors
- 4
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer lower with vinyl or wood upper exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- overhead garage door
- support posts and railings

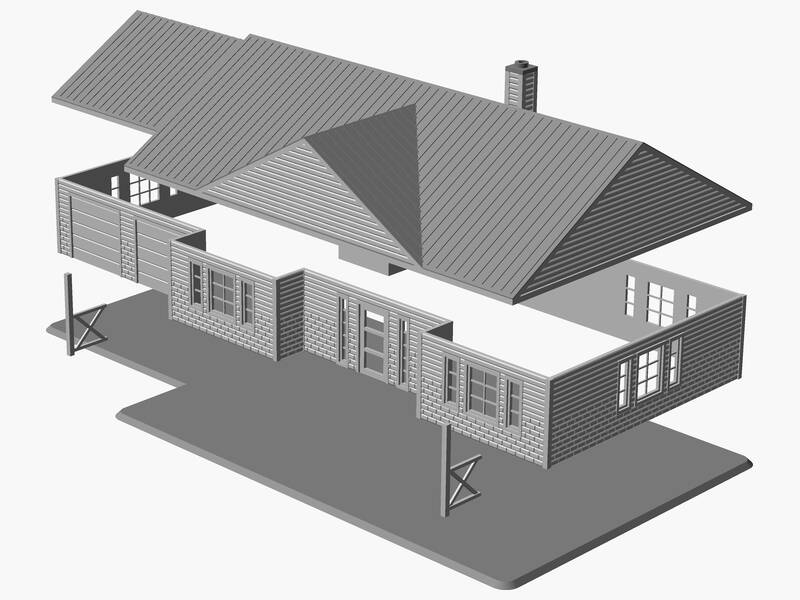

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 250.66 | 122.70 | 74.64 |
| Perimeter #1 | 240.14 | 94.66 | 28.05 |
| Wall #2 | 50.13 | 28.05 | 1.75 |
| Wall #3 | 12.27 | 28.05 | 1.75 |
| Wall #4 | 62.75 | 28.05 | 1.79 |
| Wall #5 | 12.27 | 28.05 | 1.75 |
| Wall #6 | 50.13 | 28.05 | 1.75 |
| Wall #7 | 14.02 | 28.05 | 1.75 |
| Wall #8 | 75.37 | 28.05 | 1.79 |
| Wall #9 | 78.88 | 28.05 | 1.75 |
| Wall #10 | 75.37 | 28.05 | 1.75 |
| Wall #11 | 12.27 | 28.05 | 1.75 |
| Wall #12 | 22.79 | 28.05 | 1.79 |
| Wall #13 | 12.27 | 28.05 | 1.75 |
| Wall #14 | 140.23 | 28.05 | 1.75 |
| Wall #15 | 92.90 | 28.05 | 1.75 |
| Roof #16 | 240.14 | 112.18 | 44.87 |
| Base #17 | 250.66 | 122.70 | 1.75 |
| Railing #18 | 15.78 | 28.05 | 1.75 |
| Railing #19 | 15.78 | 28.05 | 1.75 |
