KIT AF-2AT5RY
Featured
Architecture / House
Manual

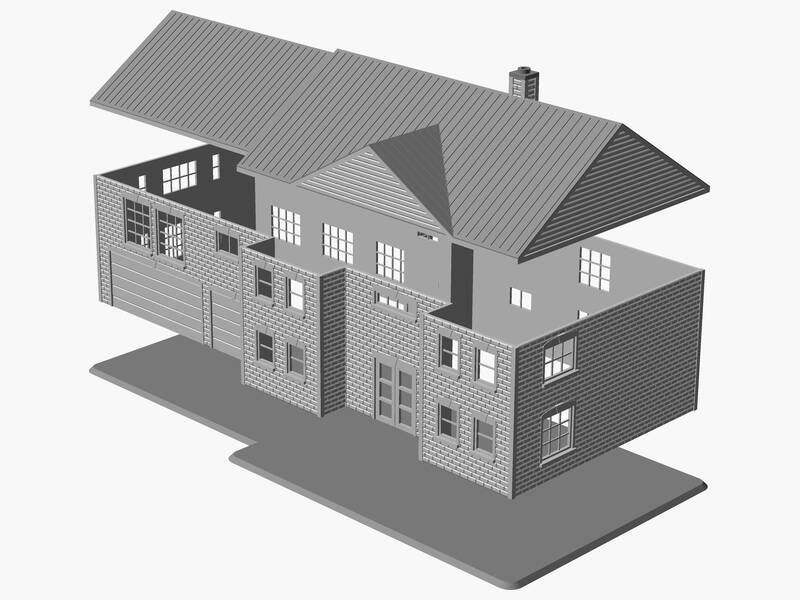

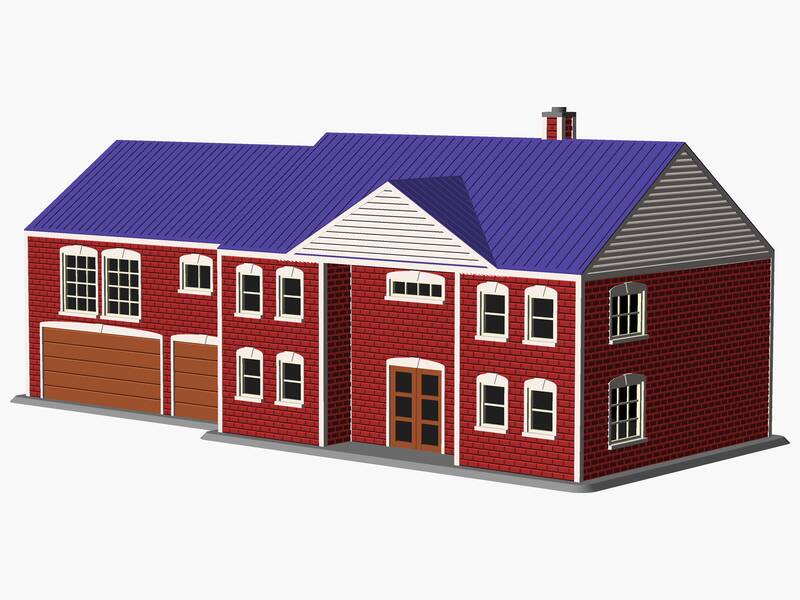

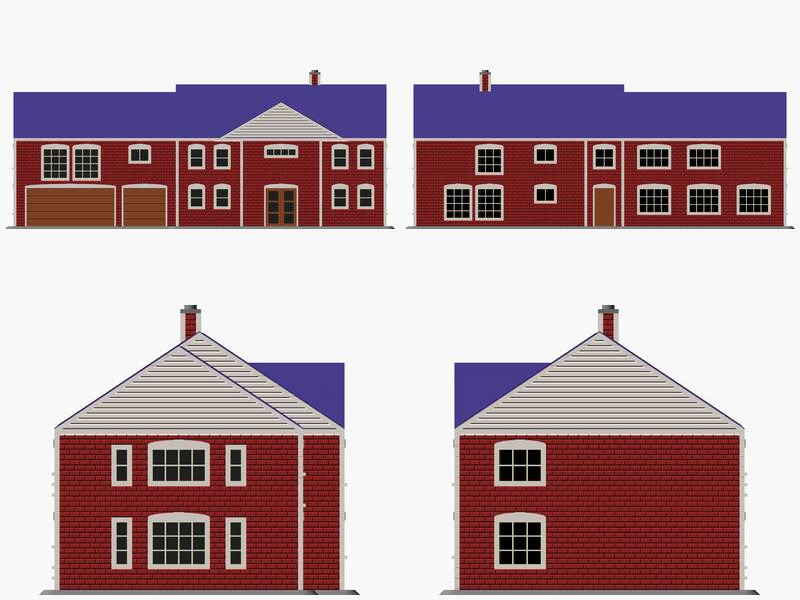

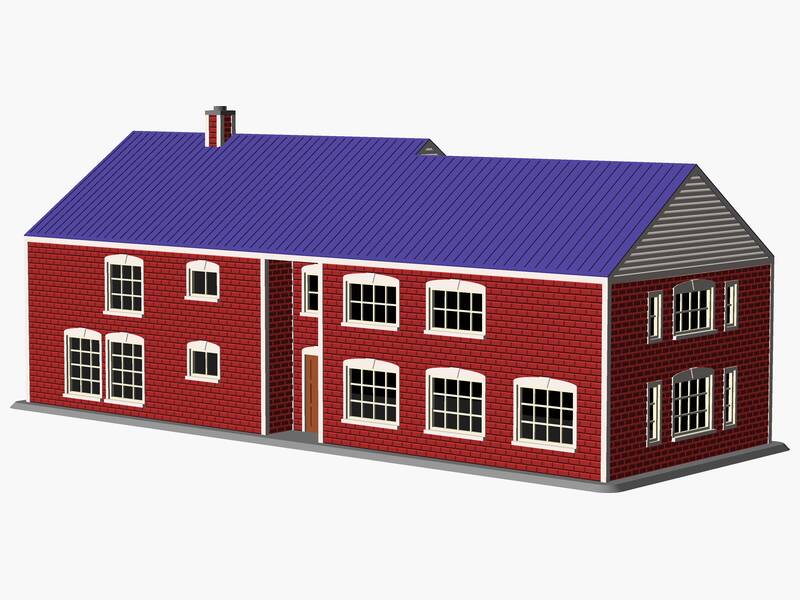

A 1/87 scale model of a two-story-style house. It features a 8/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 31 windows and 4 exterior doors. Architectural features include an overhead garage door, chimney with enclosed chase. The assembled model measures approximately 241 × 109 × 99 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 31
- Exterior Doors
- 4
- Roof Type
- Gable
- Roof Pitch
- 8/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- overhead garage door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 240.14 | 108.68 | 98.01 |
| Perimeter #1 | 231.38 | 99.91 | 52.59 |
| Wall #2 | 39.61 | 52.59 | 2.63 |
| Wall #3 | 12.27 | 52.59 | 1.75 |
| Wall #4 | 48.73 | 52.59 | 2.66 |
| Wall #5 | 12.27 | 52.59 | 1.75 |
| Wall #6 | 39.61 | 52.59 | 2.63 |
| Wall #7 | 14.02 | 52.59 | 1.75 |
| Wall #8 | 99.91 | 52.59 | 2.66 |
| Wall #9 | 82.39 | 52.59 | 2.63 |
| Wall #10 | 99.91 | 52.59 | 2.63 |
| Wall #11 | 12.27 | 52.59 | 1.75 |
| Wall #12 | 22.79 | 52.59 | 2.66 |
| Wall #13 | 12.27 | 52.59 | 1.75 |
| Wall #14 | 105.17 | 52.59 | 2.63 |
| Wall #15 | 96.41 | 52.59 | 2.63 |
| Roof #16 | 229.63 | 98.16 | 43.70 |
| Base #17 | 240.14 | 108.68 | 1.75 |
