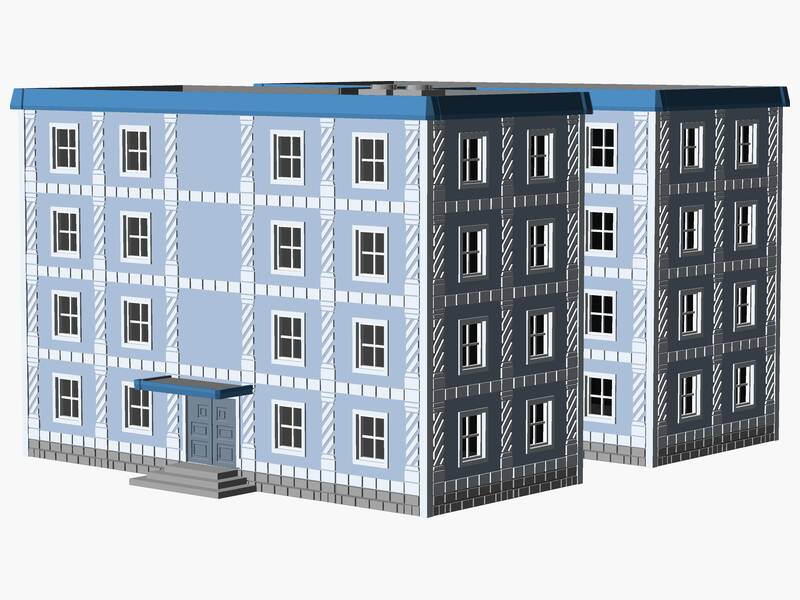

A 1/87 scale model of a 4 story municipal or multifamily-style building. The assembled model measures approximately 232 × 288 × 161 mm.
Specifications
- Type
- 4 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 12
Features
- Stucco exterior with columns and stone block decorative elements
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 231.38 | 287.97 | 160.21 |
| Perimeter #1 | 224.37 | 287.97 | 147.94 |
| Wall #2 | 220.86 | 147.94 | 24.81 |
| Wall #3 | 94.66 | 147.94 | 3.51 |
| Wall #4 | 94.66 | 147.94 | 3.51 |
| Wall #5 | 52.59 | 147.94 | 23.86 |
| Wall #6 | 94.66 | 147.94 | 3.51 |
| Wall #7 | 94.66 | 147.94 | 3.51 |
| Wall #8 | 220.86 | 147.94 | 24.81 |
| Wall #9 | 94.66 | 147.94 | 3.51 |
| Wall #10 | 94.66 | 147.94 | 3.51 |
| Wall #11 | 52.59 | 147.94 | 23.86 |
| Wall #12 | 94.66 | 147.94 | 3.51 |
| Wall #13 | 94.66 | 147.94 | 3.51 |
| Roof #14 | 231.38 | 251.47 | 8.76 |
| Hvac #15 | 31.55 | 14.02 | 8.76 |
